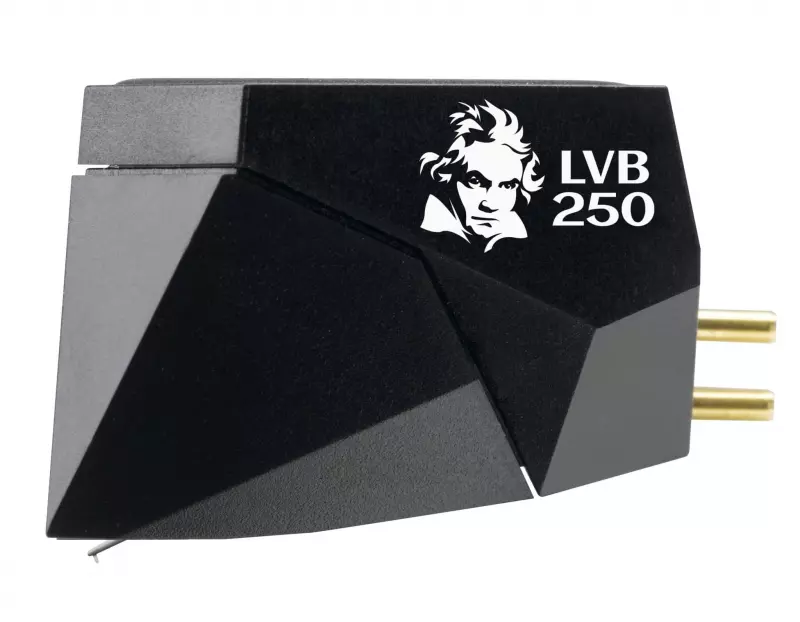

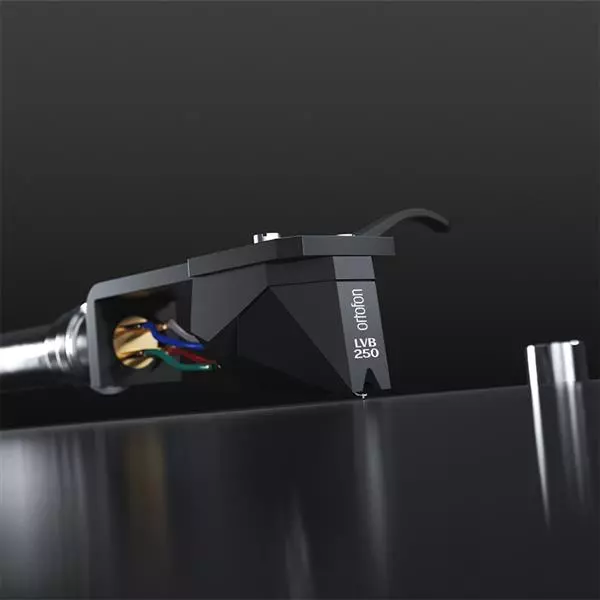

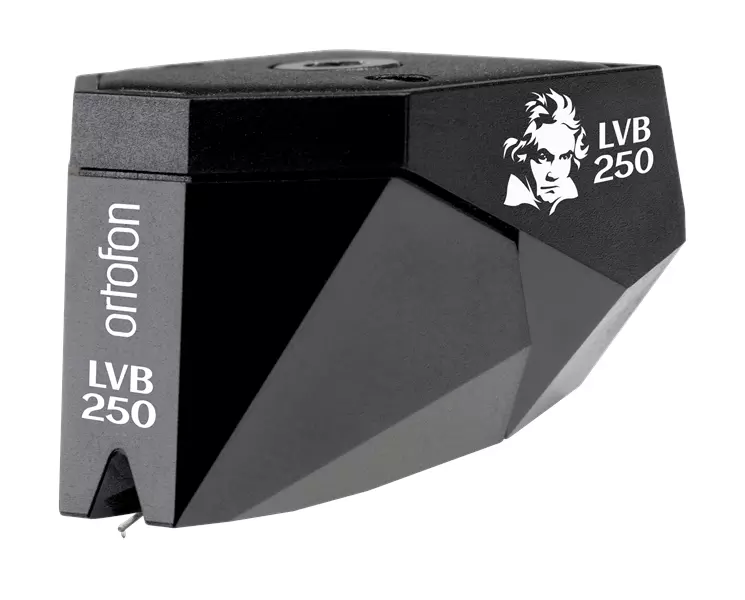

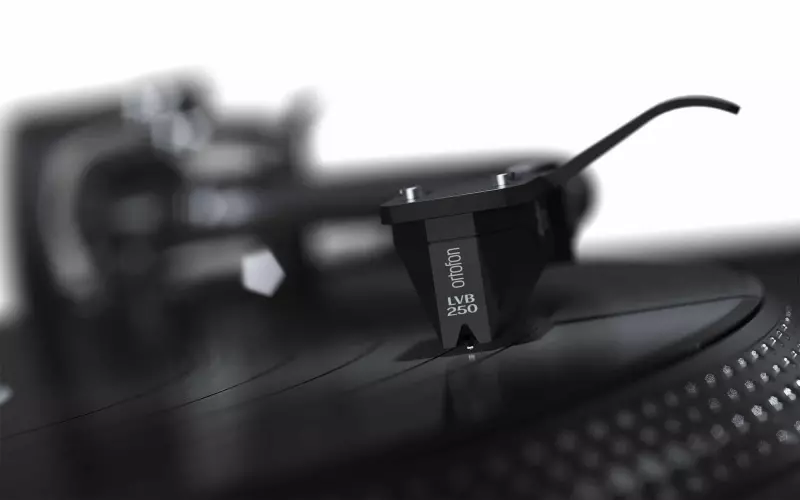

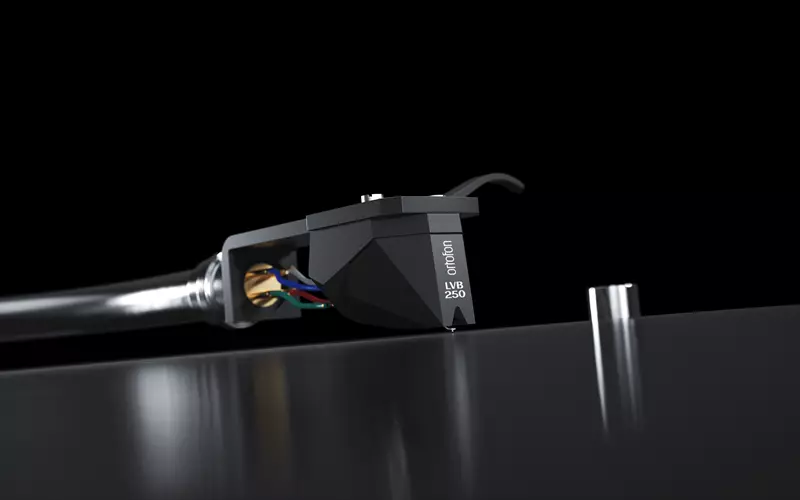

Ortofon 2M BLACK LVB 250

The composer Ludwig van Beethoven was born 250 years ago. Ortofon takes this as a great opportunity to name its latest MM cartridge under the 2M BLACK LVB 250 label after this exceptional musician and composer.

The diamond Nude Shibata - which was also used in the 2M Black model, but with a Boron tremble. The result is a truly extraordinary sound ! The Nude Shibata stylus delivers transparent and detailed sound reproduction throughout the frequency range, while the light and stiff tremble is characterized by dynamics and speed at the level of MC transports. The interior also brings innovation.....to achieve the optimum interaction between compliance and damping, a new rubber compound has been developed for the suspension system. The new MWCNT-based compound offers desirable mechanical properties that provide better damping and improve overall cartridge performance. MWCNT powder is applied in a rubber polymer matrix rather than a powdered form, making the manufacturing process cleaner, non-polluting and energy saving.

The2M Black LVB 250 uses Nude Shibata diamond on Boron tremble, a combination familiar from the acclaimed MC Cadenza Black cartridge !

• Nude Shiabata diamond
• Boron Shibata
• MC Cadenza Black technology
• New MWCNT suspension system
• Shell made of Lexan" a revolutionary material that guarantees high strength while eliminating unwanted resonances
• Split pole pins with silver plated copper wires

The warranty issubject to professional installation and adjustment of the product by a specialist organisation.

• Each Ortofon HIFI product from the official distribution for the Czech Republic is provided with an attached certification card, which forms an integral part of the 2-year or 3-year warranty and a sticker.
• Use the central database of serial numbers and register your Ortofon product immediately after purchase.the appropriate serial number, which is indicated on the enclosed card or on the label of the box.
• Registration applies only to the HIFI segment
• Warranty period: Ortofon HIFi - 2 years
• Extended 3-year warranty based on registration of the product purchased from an authorized Ortofon dealer

• Output voltage at 1000 Hz, 5cm/sec.	5 mV
  Channel balance at 1 kHz	1 dB
  Channel separation at 1 kHz	27 dB
  Channel separation at 15 kHz	15 dB
  Frequency range at - 1 dB	20-20 000 + 2 / - 1 dB
  Boron tremor	Boron
  Tracking capability at 315Hz	80 um
  Compliance	22 um/mN
  Tip	Nude Shibata
  Tip radius	r/R 6/50 µm
  Clamping force range	1.5-1.7 g (15-17 mN)
  Recommended contact pressure	1.6 g (16 mN)
  Internal impedance, DC resistance	1.2 kOhm
  Internal inductance	630 mH
  Recommended load resistance	47 kOhm
  Recommended load capacitance	150-300 pF
