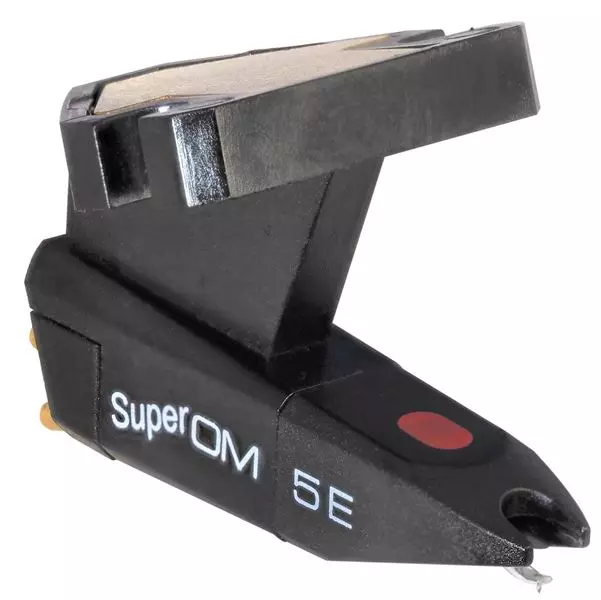

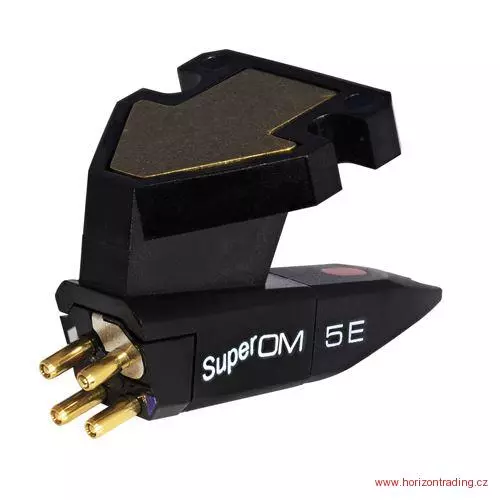

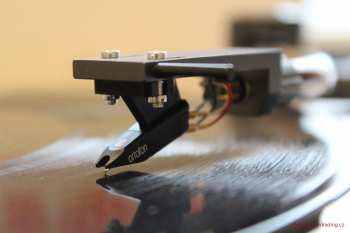

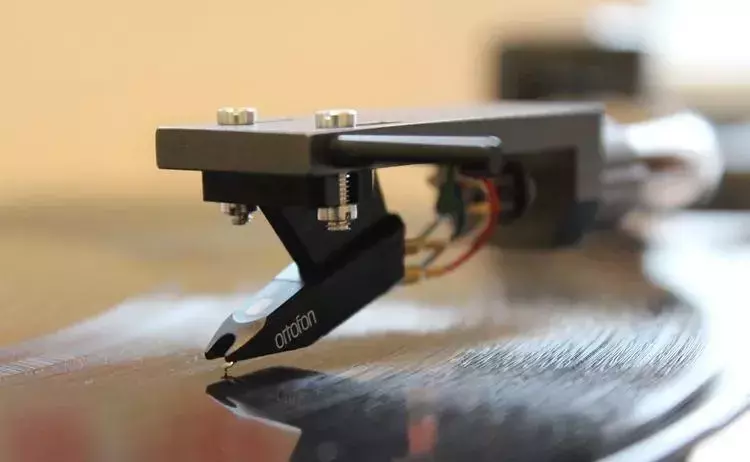

Ortofon SUPER OM 5E

Ortofon Om 5 Super - New for 2019 , elliptical tip, and hollow separate pole pins /same as the new 2M series/ 1. Using computer simulations, it was possible to define the natural point of the system with unprecedented accuracy to achieve optimal oscillation balance. The result: improved linearity, higher channel separation and reduced dist...

En savoir plus ID : 158099 EAN: 5705796013849

Garantie du meilleur prix

Si vous trouvez ce produit moins cher ailleurs, nous vous remboursons la différence !
En savoir plus

Statut

Nouveau

Disponibilité

Sur la route 2 pces

Prévu le

Prix

82,99 €

Le prix comprend la TVA 20 %

Disponibilité

Sur la route 2 pces

Prévu le

Livraison de Noël:

Malheureusement, nous ne serons pas en mesure de livrer cet article avant Noël.

Ortofon Om 5 Super - New for 2019 , elliptical tip, and hollow separate pole pins /same as the new 2M series/

1. Using computer simulations, it was possible to define the natural point of the system with unprecedented accuracy to achieve optimal oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.
2. Furthermore, a new technique was developed and applied: slot less than 1 mm and hollow separated pole pins /same as the new 2M series/, whosewhich significantly reduced the losses due to eddy currents caused by magnetic hysteresis.This sophisticated technology extends the frequency range and improves phase linearity. This is Ortofon's technology with a significant increase in quality and performance up to an impressive 5.5 mV.The transmission thus has a linear frequency response and does not suffer from reduced signal loss at higher frequencies.
3. The body of the OM 5 Super is made of Noryl (a mixture of plastic and glass), which provides high rigidity and resistance to resonance.

Output voltage at 1000 Hz, 5cm/sec.	4.0 mV
Channel balance at 1 kHz	1.5 dB
Channel separation at 1 kHz	22 dB
Channel separation at 15 kHz	15 dB
Frequency range at - 3 dB	20-25,000 Hz
Tracking capability at 315Hz	65 um
Tip radius	r/R 8/18 um
Clamping force range	1.5-2.0 g (15-20 mN)
Internal impedance, DC resistance	1 kOhm
Internal inductance	580 mH
Recommended load resistance	47 kOhm

For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet transducers. Together with our acclaimed Moving Coil transducers, Moving Magnet models have built a reputation among music lovers and Hi-Fi enthusiasts worldwide.
The new Ortofon OM 5 series includes three basic transmissions: the OM 5S, OM 5E and Super OM 5E.
- The series is Ortofon's lowest weight range of moving magnet transmissions.
- The OM cartridge bodies have been designed to provide easy mounting and alignment on both top and bottom shells.
- The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide range of phono preamplifiers.

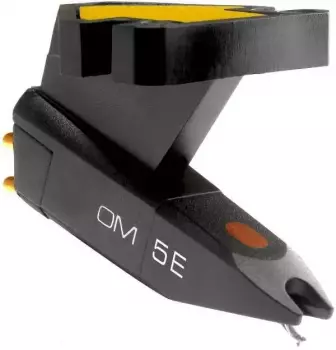

The OM 5E features an elliptical stylus that provides balanced playback without distortion. Elliptical diamonds are able to track the vibration of the grooves more accurately than spherical diamonds due to their shape. This results in better tracking and less distortion.
Using a wide range of replacement touch tips, the OM 5 series can provide the optimal solution for your home system, application and budget.
When developing the OM cartridges, the main goal was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. The OM 5 series is not only designed for replacement purposes after wear or damage, but allows you to improve your sound with a simple touch pen upgrade. Touch nibs for the OM 5 series are easily interchangeable and include: touch nibs 3E, 5E, 10, 20, 30, 40 and 78 and D 25 M.
