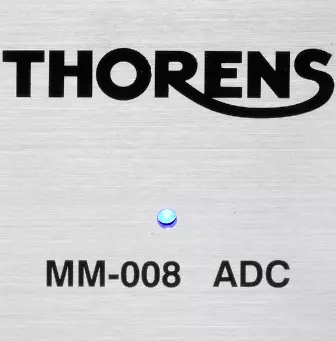

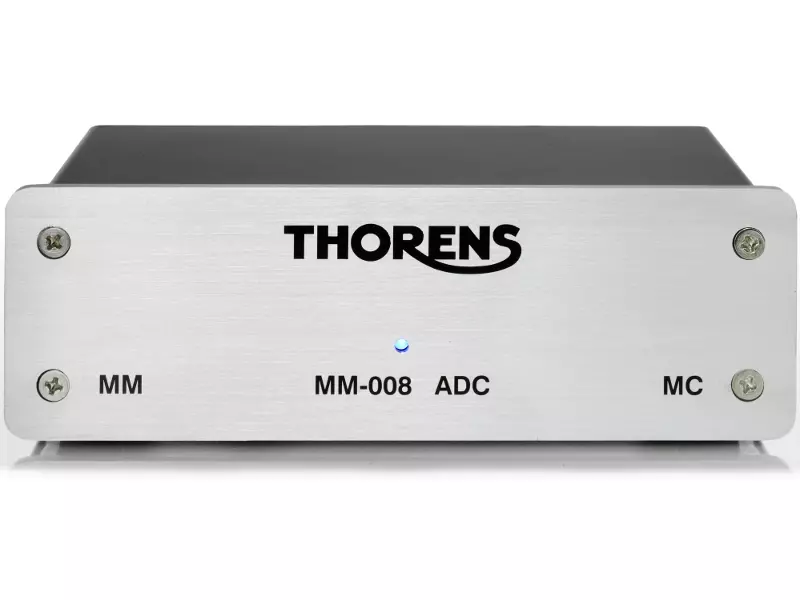

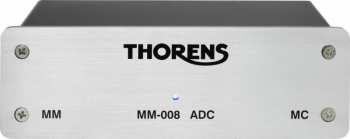

Thorens Mm-008 Adc

Audiophile designed MM/MC preamplifier with USB and AD converter Compact Thorens MM-008 ADC phono preamplifier Includes a 24bit/96kHz A/D converter and USB port that allows high quality recording from vinyl to digital Traditional Thorens top quality design Brushed aluminium front panel ...

En savoir plus ID : 282648 EAN: 4260270220881

Garantie du meilleur prix

Si vous trouvez ce produit moins cher ailleurs, nous vous remboursons la différence !
En savoir plus

Statut

Nouveau

Disponibilité

Semaine

Prix

401,99 € Livraison gratuite

Disponibilité

Semaine

Audiophile designed MM/MC preamplifier with USB and AD converter

- Compact Thorens MM-008 ADC phono preamplifier
- Includes a 24bit/96kHz A/D converter and USB port that allows high quality recording from vinyl to digital
- Traditional Thorens top quality design

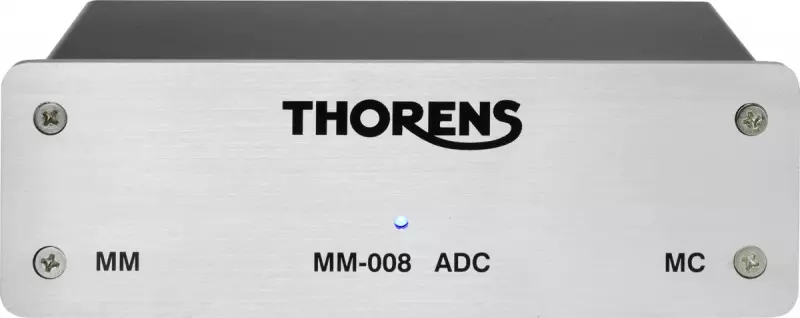

- Brushed aluminium front panel

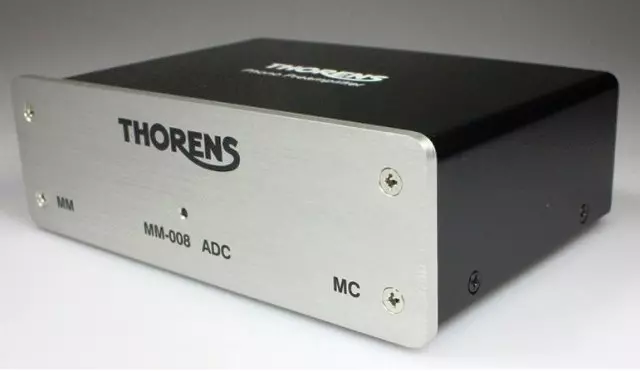

- All-metal housing provides quality shielding
- Separate pairs of input jacks for MM and MC cartridges
- Includes a set of capacitive adapters to match the input impedance to the MC transmission
- Ideal value for money
- Colour: silver

Specifications:


Operation	MM/MC (switchable)
Gain at 1 kHz	40 dB (mm), 60 dB (MC)
Input impedance	47 kOhm + 220 pF fixed / for MM / 47 kOhm + 1 nF variable via external capacitive connectors / for MC /
Frequency range Frequency range (-3 dB)	20 Hz - 20 kHz 10 Hz - 50 kHz
RIAA curve accuracy	± 0.3 dB
THD + N	<0.013% (MM) / <0.055% (MC)
Signal to noise ratio	> 86 dB (MM) / > 72 dB (MC)
Crosstalk	40 dB
Input sensitivity	3.29 mVrms at -10 dBV (316 mVrms) output for MM mode 0.325 mVrms at -10 dBV (316 mVrms) output for MC mode
Maximum output voltage	482 mVrms at 5 mVrms input (1 kHz)
Output impedance	47 Ohm

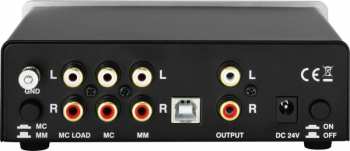

Input connectors	3 pairs of RCA (cinch) connectors (left/right channel)
Output connectors	1 pair of RCA (cinch) connectors (left/right channel) 1x USB
A/D converter	Tenor TE7022L 24bit Delta Sigma
Sampling Frequency	8, 16, 32, 44.1, 48, 96 kHz
USB connection	USB 2.0, fully compatible with USB 1. 1
Supported OS	Windows® 8/7 / Vista / XP, Mac OS®
Source	External 24 V DC
Consumption	3.4 W, 15 mA
Dimensions (h x w x d)	50 mm × 150 mm × 117 mm
Weight	504 g (without external power supply)

Qualités

Couleur

Argent

Type

MM, MC

Entrées et sorties

Accès

Cinch Femelle

Sortie

Cinch Femelle, USB
