Audiophile phono preamplifier with polystyrene capacitors

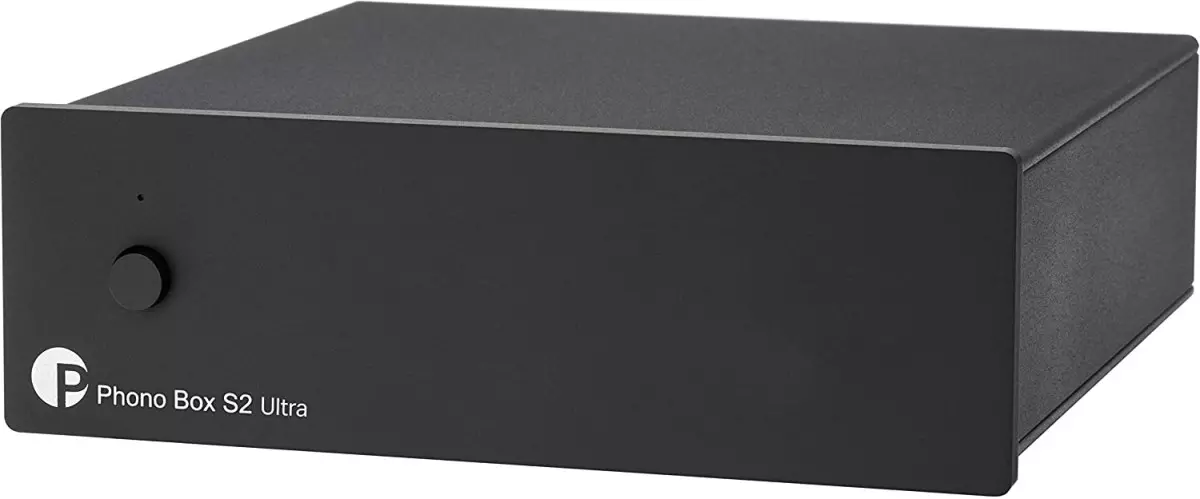

ThePhono Box S2 Ultra is a unique phono preamplifier in its class. The pursuit of the highest possible sound quality at a reasonable price was the driving force behind the launch of this audiophile phono preamplifier within the S2 series. The solid metal housing protects the unit from interference and the internal construction is as perfect as that of much more expensive phono preamps.

It is a completely discrete solution that results in an incredibly harmonious sound. The Phono Box S2 Ultra is a luxury and audiophile device all rolled into one!

In the design, operational amplifiers were omitted and polystyrene capacitors were used, which contribute significantly to the Phono Box S2 Ultra's superior sound. These capacitors are known among audiophiles as the holy grail for phono preamps. The split RIAA curve allows for accurate RIAA rendering, a luxury not offered by many other, even more expensive phono preamps.

BENEFITS

• - Audiophile quality
• - No operational amplifiers are used
• - Audiophile quality polystyrene capacitors
• - Accurate RIAA distribution
• - Switchable subsonic filter - 18 dB @ 20 Hz

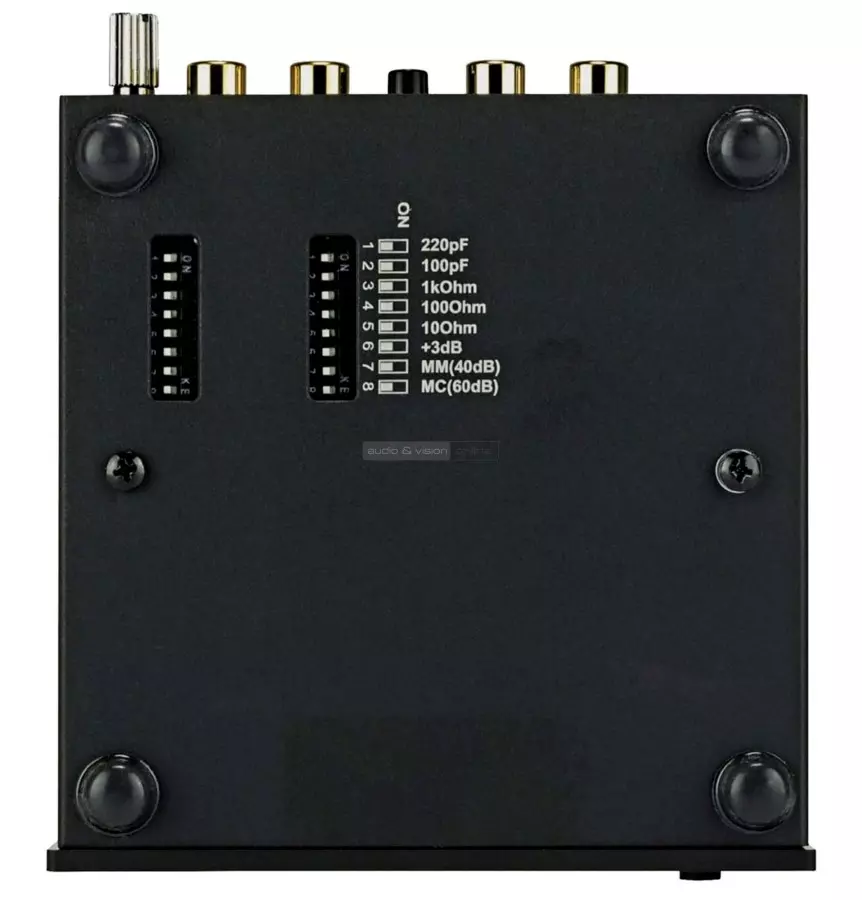

• - Adjustable input impedance / capacitance
• - Six selectable gain levels
• - Rugged metal housing to protect against interference
• - Superior sound quality

TECHNICAL SPECIFICATIONS

• Input impedance:10 / 100 / 1 kΩ / 47 kΩ
• Input Capacitance:100 / 220 pF
• Gain setting: 40 / 43 / 50 / 53 / 60 / 63 dB
• Subsonic filter:-18 dB @ 20 Hz
• Signal to noise ratio:- 89 dB V (MM)
• THD:0,00052 %
• RIAA Accuracy:< 0.4 dB / 20 Hz - 20 kHz

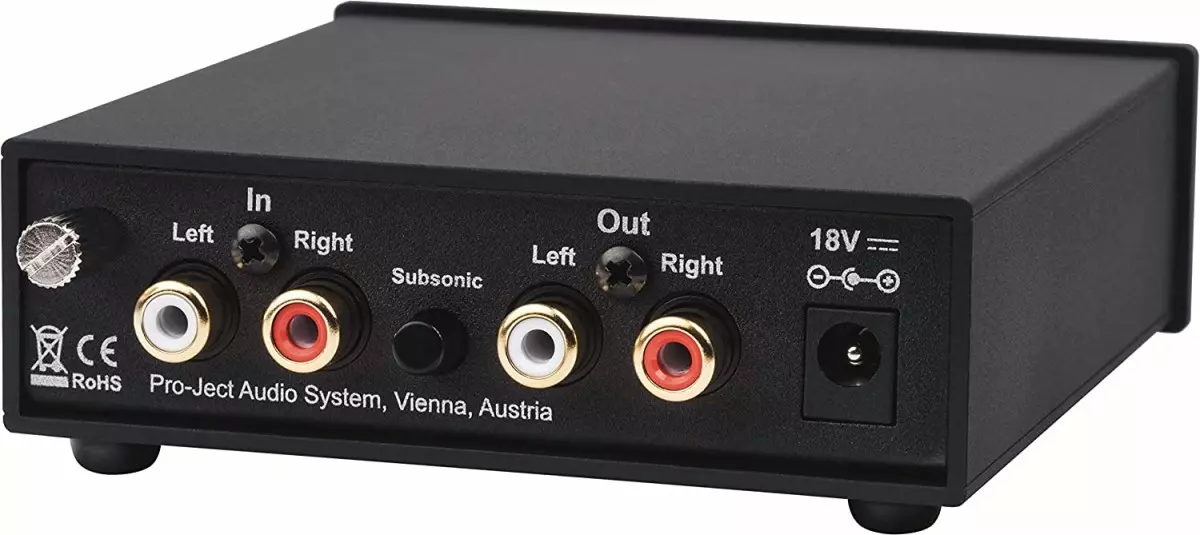

• Input/Output:1 pair of RCA connectors
• Power Consumption:18 V / 80 mA
• Power supply:18 V DC / 500 mA
• Dimensions (W x H x D):103 x 37 x 119 mm
• Colour:Silver or black
• Weight:570 g without power supply
