Technique audio Ortofon Concorde Music Blue

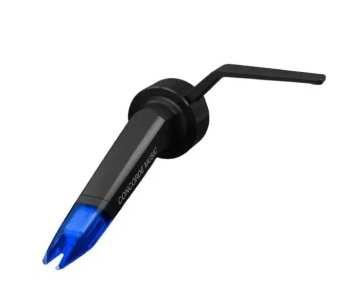

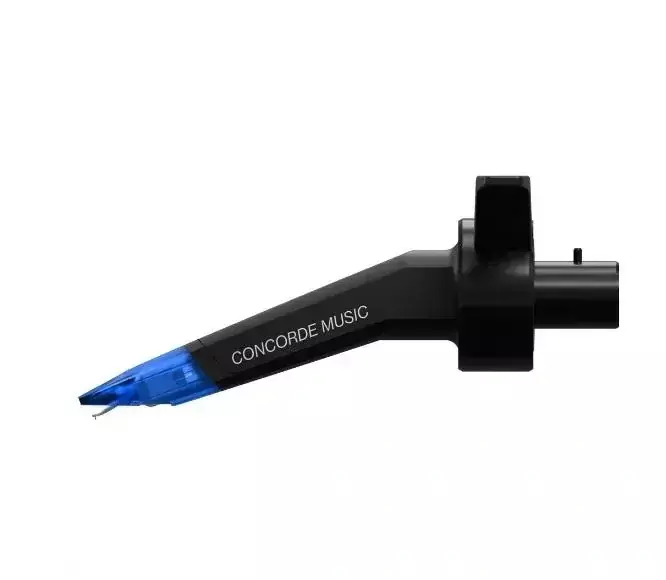

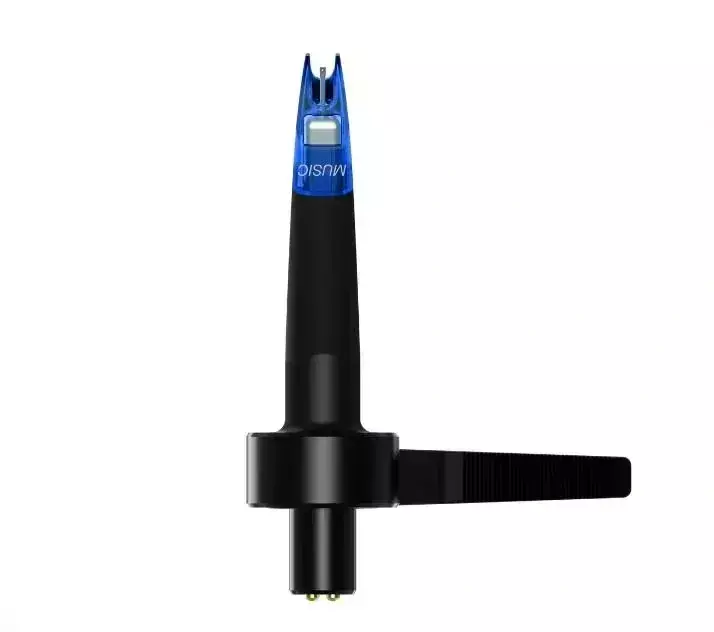

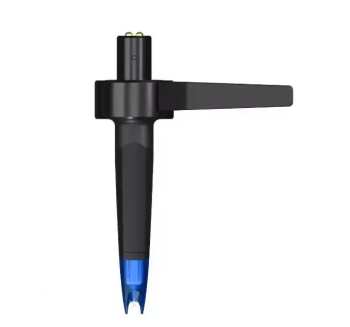

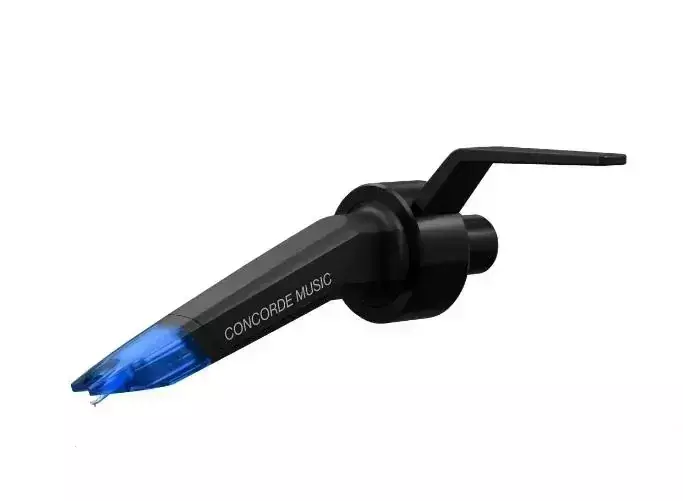

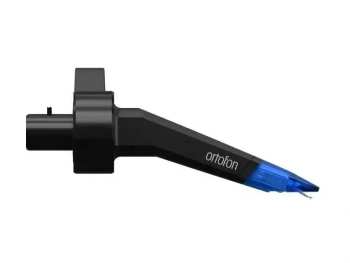

Ortofon Concorde Music Blue

Ortofon

Transferts

En savoir plus ID : 554525 EAN: 5705796080636

Garantie du meilleur prix

Si vous trouvez ce produit moins cher ailleurs, nous vous remboursons la différence !
En savoir plus

Statut

Nouveau

Disponibilité

Nous avons modifié la nomenclature de la pile. Les articles livrables dans une semaine sont désormais "En stock chez le fournisseur". Les articles livrables dans les deux semaines sont désormais "En stock chez l'éditeur".

Chez le fournisseur 2 pces

Prévu le

Prix

253,99 €

Le prix comprend la TVA 20 %

Disponibilité

Chez le fournisseur 2 pces

Prévu le

Premium MM cartridge, naked elliptical tip, diamond tip (tipped)
Building on a rich heritage that began when we launched the original Concorde, Concorde Music has a storied history as one of the most celebrated cartridges in the audio world. Originally developed as a solution to the challenge of easy mounting on an arm without screws and wires, Concorde's unique design has won the Danish Industrial Design Award and become an icon in the audio industry.
Made in Denmark

Concorde Music Blue

Experience stunning, clear sound reproduction with Concorde Music Blue, featuring a high-quality Nude Elliptical tip on an aluminium beam and offering an upgrade from Concorde Music Red. Enjoy seamless upgrades throughout the series, from Concorde Music Blue to Concorde Music Black LVB 250, and it's very simple... by changing the stylus.

A simple solution for easy installation on the S-arm without screws and wires !

Installing a Music Concorde series transfer case on your turntable is easy and straightforward. No tools are required, making installation hassle-free and convenient for all users. This is thanks to the bayonet/SME connector, which makes it compatible with all S-shaped arms.

NO - for installation on straight arms ! Curved and S-shaped only.

The Concorde Music can be upgraded with any stylus in the Concorde Music series, allowing an upgrade path throughout the series all the way up to the Concorde Music Black LVB 250.

Specifications:

Channel balance at 1 kHz

1.5 dB
Output voltage at 1 kHz, 5 cm/sec

6 mV
Channel separation at 1 kHz

25 dB
Channel separation at 15 kHz

15 dB
Frequency range 20Hz - 20kHz

+2/-1 dB
Tracking capability at 315 Hz at recommended tracking strength

80 um
Flexibility, dynamic, lateral

15 um/mN
Stylus type

Bare Shibata diamond on aluminium bracket / Nude Elliptical diamond
Touch tip radius

r/R 8/18 um
Tracking force, recommended

1,8 g
Tracking angle

20°
Internal impedance, DC resistance

1.27 kΩ
Transmitter colour

Black/Blue
Cartridge weight

18 g
Recommended load resistance

47 kΩ
Internal inductance

815 mH
Recommended load capacitance

150-300 pF
